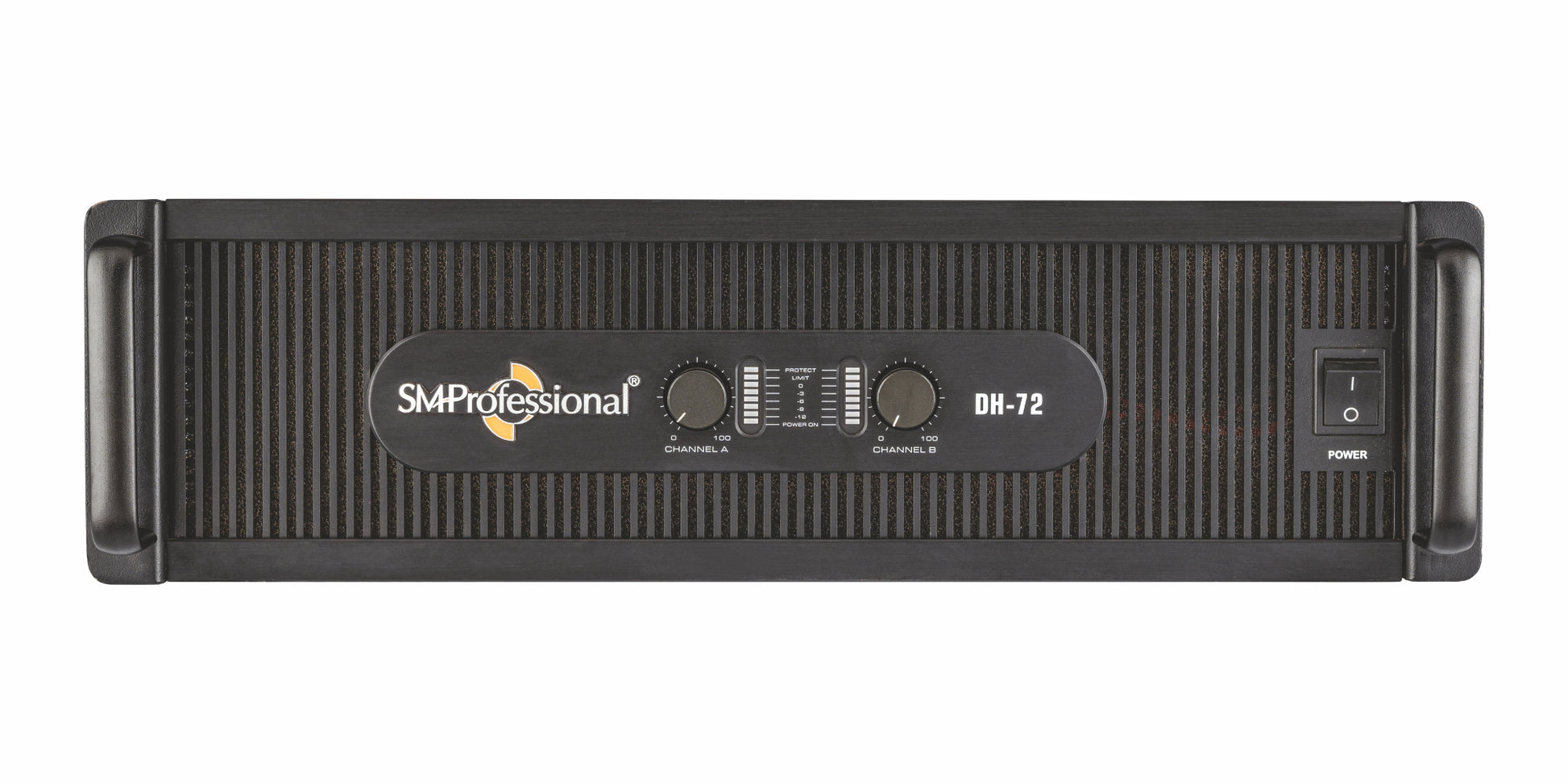

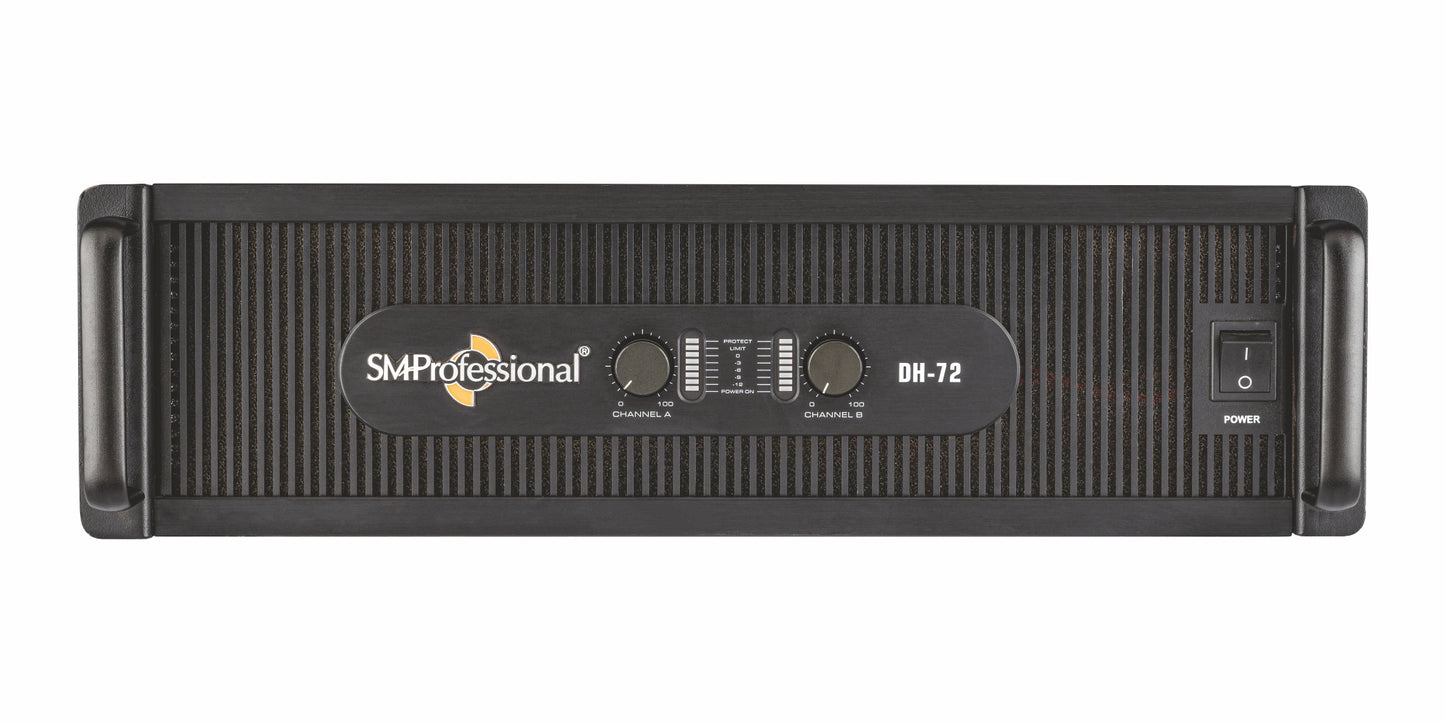

DH 72 - Digital Hybrid 1800W Power Amplifier

Select from finely-graded sensitivity levels with tamper-proof dip switches. Adjust sensitivity from 26dB to 47dB (+3dB increments) to connect various input devices and loudspeaker types. Equipped with high-current toroidal transformers and durable cores for superior transient response. Choose from stereo, parallel, or bridge operational modes.

Experience low THD and a high damping factor for exceptional sound quality. Includes a built-in limiter circuit for speaker protection against distorted input signals. Features protection devices such as temperature, VHF, DC, short circuit, soft-start, and overload. Utilizes intelligent cooling and dual variable speed CFM fans for efficient heat dissipation. Includes a 3-color LED bargraph to display power ON, signal (5-segments), limit, and protect status.

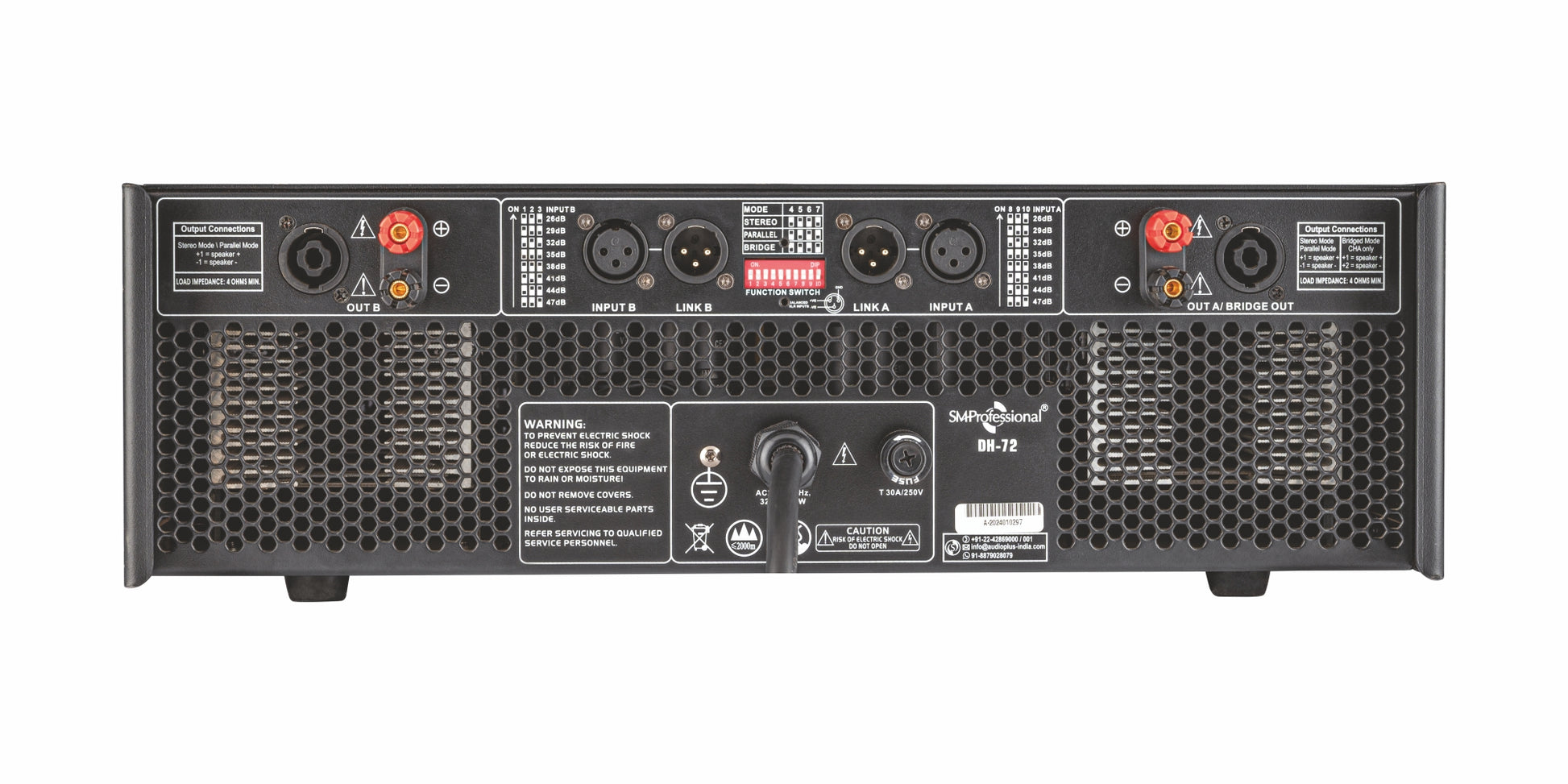

Features audio-grade balanced XLR input connectors, high-performance Speakon, and binding post output connectors. Compatible with a wide range of mains voltage (150-240V AC). Minimal wiring and standardized layout for easy
